Intumescent paint coatings finish standards
It should be noted that the level of finish does not affect the fire rating level in any way... all finishes offer the same degree of protection.

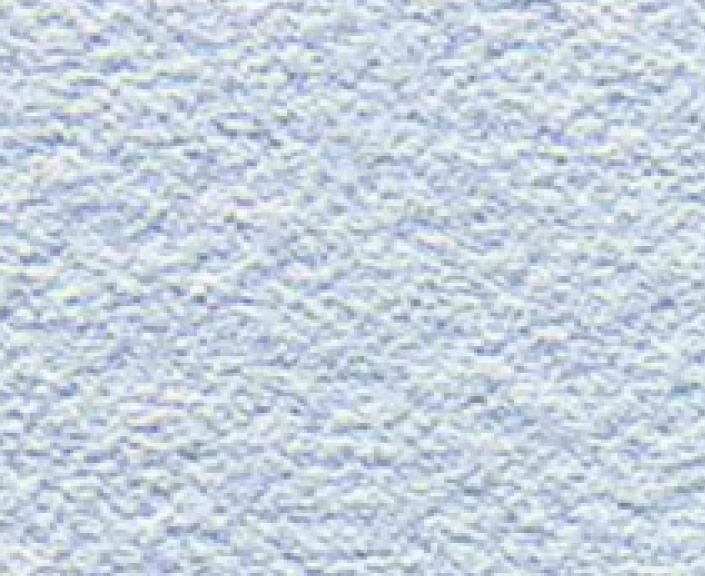

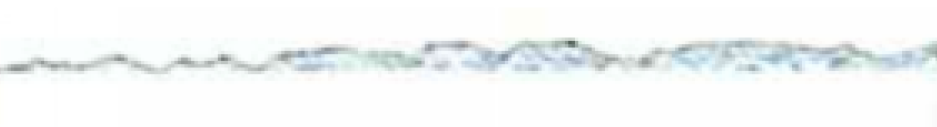

Standard finish
Application
Spray applied
Areas of use
Non-visible areas
Finish
Stippled, "orange peel" finish
Profile

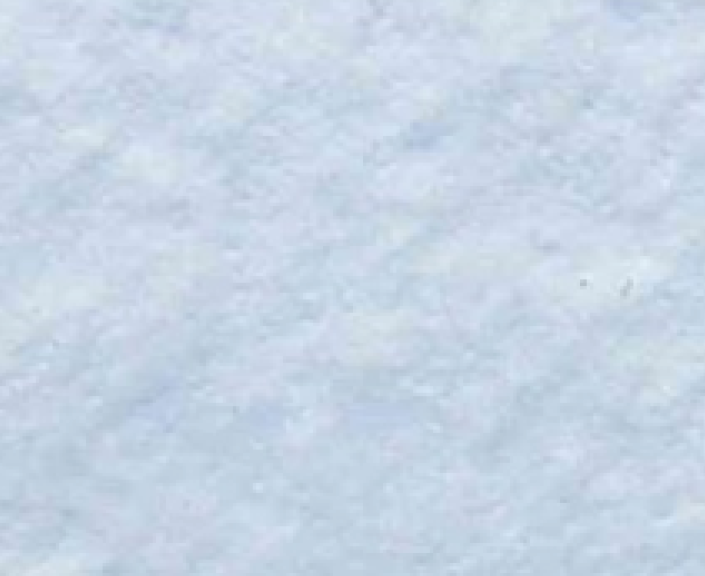

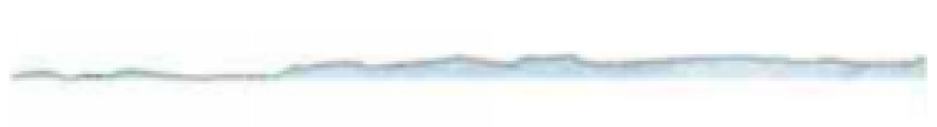

Commercial finish
Application
First coat spray applied, second coat thinned, top coat spray applied
Areas of use
Visible areas distant from foot traffic
Finish
Uniform appearance with minor "orange peel" appearance
Profile

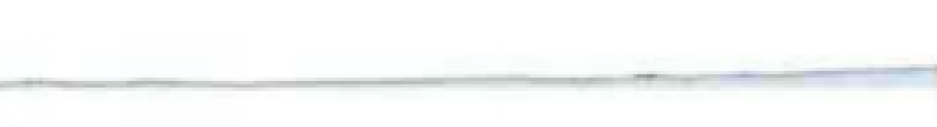

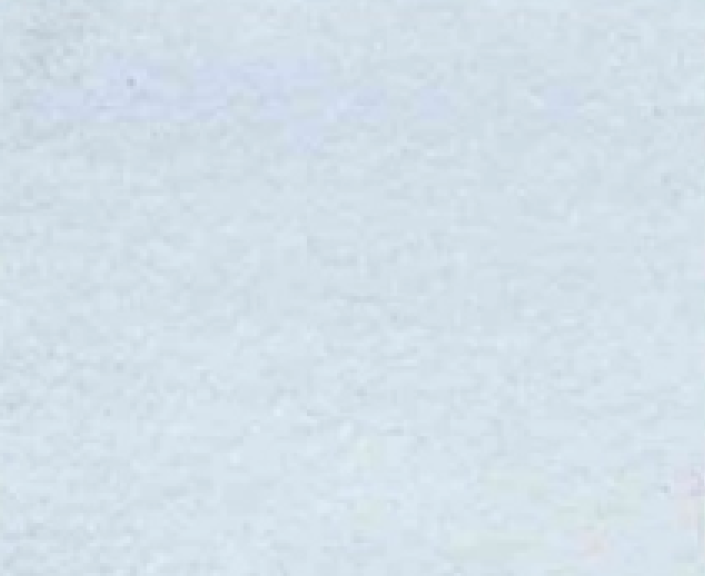

Architectural finish
Application
First coat spray applied, sanded flat, second coat thinned, top coat spray applied
Areas of use
Visible areas
Finish
Smooth appearance
Profile
