Concrete repairs

Building Maintenance

Repairs and patching to cement rendered walls can be undertaken.

Coatings and Protection for Concrete Structures

Concrete structures can degrade through chloride ingress (salt) or carbonation attack (CO2).  If not treated this can lead to 'concrete cancer'.

Swart and Sons can coat concrete structures with Silane Siloxane penetrating sealants and carbonation coatings.  In both instances the coatings prevent the entry of the contaminants into the concrete.

Epoxy Injection

Structural cracks in load bearing structures can cause problems in the long term.  Swart and Sons can inject low viscosity epoxy resins into the cracks in order to create a structural repair using inflatable balloons.

Slabjacking

Concrete floor slabs can deflect (drop) where the sub fill under the floor is, for example, washed away.  We can pump cementitious grouts under pressure into the void under the slab in order to lift the slab back to its original level.

Concrete Repair

Concrete cancer occurs when steel reinforcement expands inside the concrete due to the entry of contaminants.  Swart and Sons remove the affected concrete and treat the steel with cold galvanising zinc paint. Sow cuts are then placed into the concrete and a non-shrink high strength repair mortar is pumped or sprayed into position to create a structural repair.

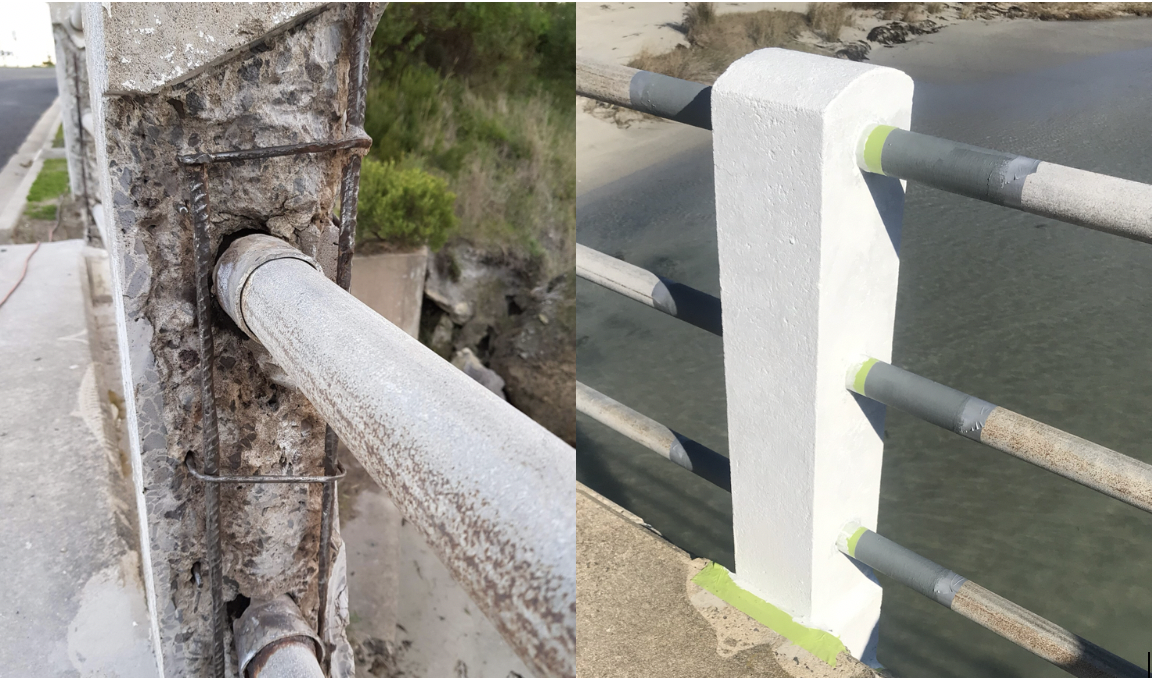

Concrete fence post before repairs
Concrete fence post after repairs

Concrete repair case studies

Wild Dog Valley Road Bridge

In April 2020, we were contracted by a local council in the south-east of South Australia to carry out cleaning, surface preparation and application of protective coatings to concrete and steel components of a road bridge. Upon completion of the initial water blast, all steel handrails on the bridge were sanded by hand and the concrete posts and plinths were ground back to a clean surface to remove all contaminants. Finally, protective coatings were applied - a two-component coating system of primer and topcoat.
Concrete repairs
Protective coatings
Structural steel
Transport & infrastructure

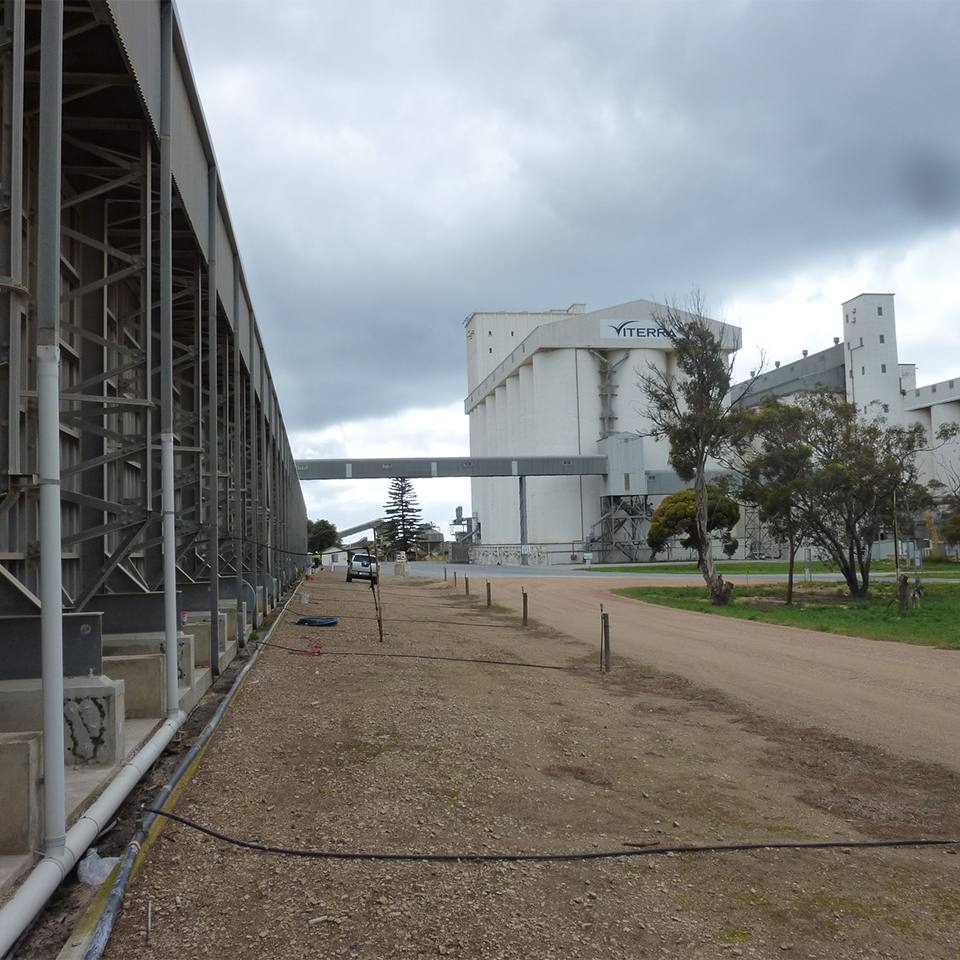

Concrete Repairs, Ardrossan

Swart & Sons were contracted by Viterra in August 2018 to carry out structural concrete crack repairs to more than seventy concrete plinths at their Ardrossan property. Whilst undertaking repairs on site, we were requested to carry out additional repair works on concrete nib walls. All works were carried out in accordance with a specification provided by Viterra.
Concrete repairs
Industrial
Manufacturing

Regency Road to Pym Street (R2P) Project

Swart & Sons were contracted to carry out painting and concrete repair works on a number of the components of this major government funded project, including the Regency Road overbridge, walkways and ramps, concrete panels and steel gantries. The majority of the work was carried out directly for the R2P Alliance (McConnell Dowell) with additional work undertaken for other contractors on the project.
Concrete repairs
Protective coatings
Transport & infrastructure

Bridge pier strengthening, Southend, SA

In May 2020 we tendered to carry out work on Cape Buffon Drive over the Lake Frome outlet drain. After consideration by the South Eastern Water Conservation and Drainage Board (SEWCDB), Swart & Sons were awarded the contract to prepare the piers, apply protective coatings and install a fibre reinforced polymer (FRP) jacket system. All work was carried out in accordance with the specification and scope provided by SEWCDB.
Protective coatings
Concrete repairs
Remediation
Structural repairs
Transport & infrastructure

Adelaide Desal Plant

In July 2018 Swart & Sons were contracted by Adelaide Aqua Pty Ltd to carry out repair works on a concrete overflow tank. Works consisted of concrete repairs, abrasive blasting and application of protective coatings to the walls and floors of the tank. Due to the nature of the tank, work was considered to be ‘high risk construction work’, which incorporated working in confined spaces, risk of a person falling more than two metres plus working in an area with movement of powered mobile plant.
Concrete repairs
Abrasive blasting
Protective coatings
Marine
Transport & infrastructure
